Library for generating SVG files

Supported SVG features, elements

TMS FNC Core supports SVG files and can import and render SVG. SVG support is limited to
  • Uncompressed SVG files in XML format
SVG supported elements:
  • circle
  • clipPath
  • defs (limited to predefined style, no gradients, no paths, only single fill/stroke parameters)
  • ellipse
  • g
  • image (limited to base64 encoded string value)
  • line
  • path
  • pattern (no gradients, no paths, only single fill/stroke parameters)
  • polygon
  • polyline
  • rect
  • style
Within the style element supported parameters are:
  • fill (no gradients)
  • stroke (no gradients)
  • stroke-width
  • opacity
Within the primitives (line, polygon, polyline, rect, path) supported parameters are:
  • fill (no gradients)
  • stroke (no gradients)
  • stroke-width
  • transform (scale, rotate, translate, matrix)

With SVG support in TMS FNC Core we aim for smaller SVG icon sets that can be used to target normal and high DPI applications. When scaling, SVG will scale accordingly and still render sharp at different resolutions. SVG support has been added to avoid the need for numerous icons for each different scale / resolution.

Adding SVG support to your application

SVG support can be added to your application by using the built-in TTMSFNCBitmap editor (FMX, VCL) or with TPicture default designtime open file dialog (VCL, LCL, WEB). When the open file dialog is shown at designtime, an option is available for picking SVG files.

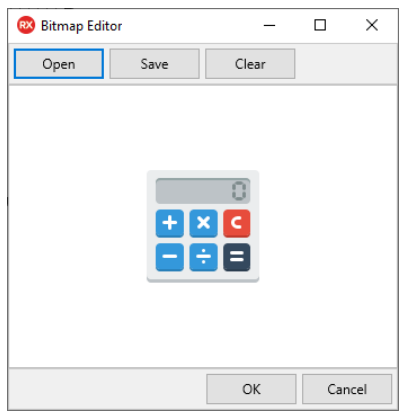

TTMSFNCBitmap editor (FMX, VCL):

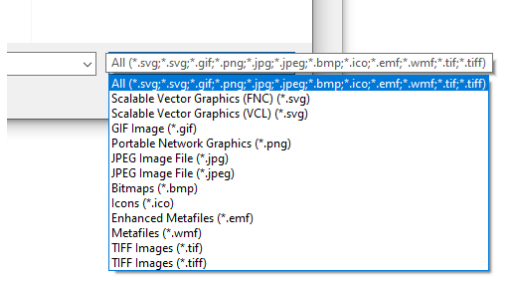

TPicture (VCL, LCL, WEB)

Runtime support includes LoadFromFile, LoadFromStream, SaveToFile, SaveToStream as this is the case with other file image types such as PNG, JPG, GIF, BMP, ICO, .
