Building a StellarDS Management App with Our Latest TypeScript SDK and AG-Grid
Wednesday, February 26, 2025
Last week, we released our latest StellarDS SDK for TypeScript, designed to be flexible and easy to use across various frameworks. To demonstrate its capabilities, weve built a comprehensive React demo that leverages both our SDK and AG Grid to create a management application for your StellarDS project.
Since this demo covers a lot of ground, were splitting the blog post into two parts:
- Part 1 (This post): Setting up the React project, installing dependencies, and using the SDK to create components and modals for managing your project and tables.
- Part 2 (Coming next week): Integrating AG Grid, performing CRUD operations on tables, customizing the interface, and running the complete project.
Demo
Since this demo contains a significant amount of source code, we wont cover every single line in detail. Instead, weve provided the complete source code, which you can download here.
In this blog post, well focus on the core functionality of the applicationhow it works and how to integrate the StellarDS TypeScript SDK. Well skip the UI design aspects and other minor details, keeping the focus on the key implementation steps.
Prerequisites
Before getting started, make sure you have the following installed:
- Node.js (v14 or higher)
- npm (v6 or higher) or yarn
- An IDE of your choice (we use Visual Studio Code)
Setting Up the React Project
First, lets create a new React project using TypeScript. Open your VSC terminal and run:
npx create-react-app my-project --template typescript
cd my-project
npm start

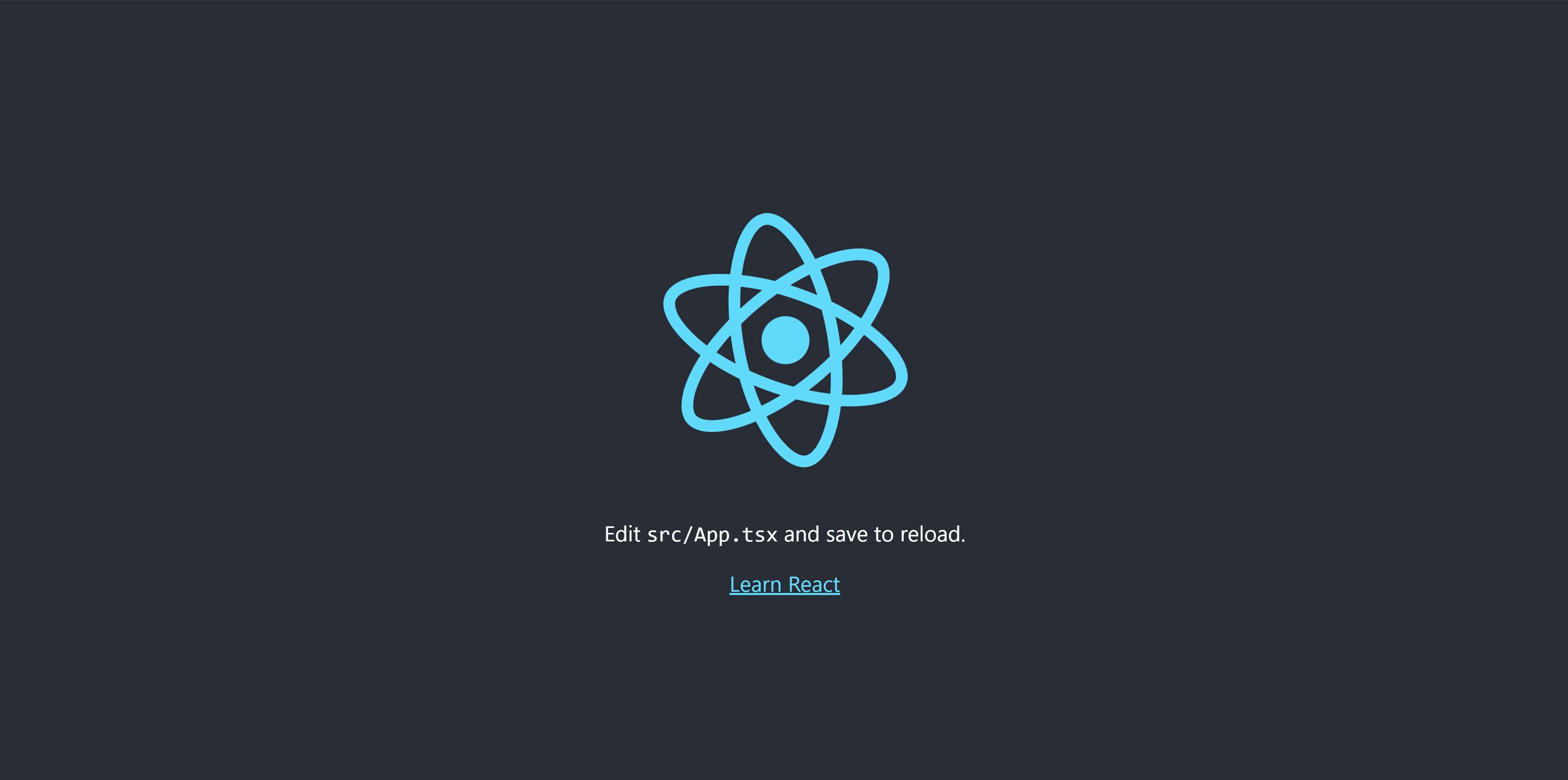

At this point, you have a fully functional React application ready to integrate with the StellarDS SDK.
Installing Dependencies & Configuring the Environment
Now that our React project is set up, the next step is to install the necessary npm packages. Run the following command to install all required dependencies:
npm install @mui/material @emotion/react @emotion/styled ag-grid-react ag-grid-community stellards_typescript_sdk
The key dependencies here are:
stellards_typescript_sdk
Our SDK for interacting with StellarDS.ag-grid-react
&ag-grid-community
Used to create and manage data grids.- Material UI (
@mui/material
,@emotion/react
,@emotion/styled
) For styling components.
Configuring Environment Variables
Next, we need to set up environment variables for our project. Create a .env
file in the root of your project and add the following:
REACT_APP_API_BASE_URL= https://api.stellards.io REACT_APP_PROJECT_ID= MYPROJECTID REACT_APP_OAUTH_TOKEN= MYTOKEN GENERATE_SOURCEMAP= false
These variables will allow us to dynamically configure API calls without hardcoding sensitive information in the codebase.
Loading Environment Variables in Code
To use these environment variables throughout our project, create a config.ts
file inside the src
directory and add the following code:
const config = { apiBaseUrl: process.env.REACT_APP_API_BASE_URL, projectId: process.env.REACT_APP_PROJECT_ID, authToken: process.env.REACT_APP_OAUTH_TOKEN, }; export default config;
Now, we can import config
anywhere in our project whenever we need access to these environment variables.
Setting Up Routing
Now, lets configure routing in our App.tsx
file using react-router-dom
while also wrapping our application with a ThemeProvider
for consistent styling. Update the App
function as follows
function App() { return ( <ThemeProvider theme={theme}> <div className="App"> <BrowserRouter> {" "} {/* Use BrowserRouter for routing */} <div> <Routes> {" "} <Route path="/" element={<TablesList />} /> <Route path="/table/:tableId" element={<TableComponent />} /> </Routes> </div> </BrowserRouter> </div> </ThemeProvider> ); }
What This Does:
- Wraps the entire app inside
ThemeProvider
, allowing us to apply a global theme. - Uses
BrowserRouter
to enable client-side routing. - Defines two routes:
/
→ Loads theTablesList
component./table/:tableId
→ Dynamically loads theTableComponent
based on thetableId
parameter.
At this point, if TablesList
and TableComponent
haven't been created yet, they will show errorsyou can ignore these for now.
Showing a list of tables using a TableList Component
The TablesList
component is responsible for displaying and managing tables in a StellarDS project. It leverages the TableService
from the StellarDS TypeScript SDK to interact with the API, enabling users to fetch, create, update, and delete tables. Navigation is handled using React Router, while the UI is built with Material UI.
Using TableService
from stellards_typescript_sdk
The StellarDS TypeScript SDK provides TableService
, which simplifies interactions with the API. This service is instantiated using authentication and project details from the config.ts
file.
import { TableService } from "stellards_typescript_sdk"; const tableService = new TableService(config.authToken ?? "", config.projectId ?? "");
With this service, the component can call methods like getTables()
, createTable()
, updateTable()
, and deleteTable()
to manage tables efficiently.
Fetching Tables
When the component loads, it fetches the list of tables using tableService.getTables()
. This function is triggered inside a useEffect()
hook, ensuring data updates when the project ID changes.
async function fetchTables() { const response = await tableService.getTables(config.projectId ?? ""); setTables(response.data); } useEffect(() => { if (config.projectId) fetchTables(); }, [config.projectId]);

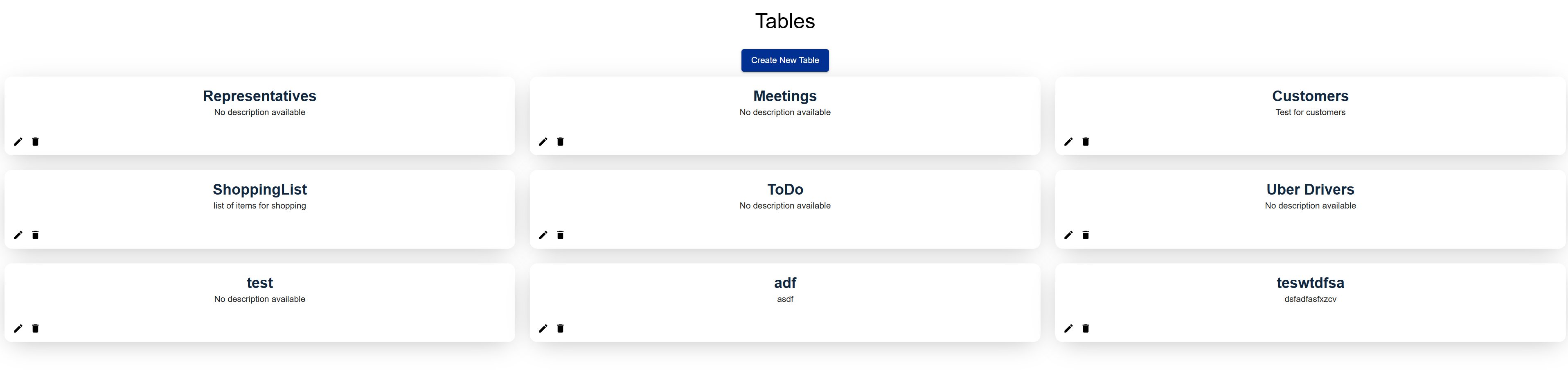

Rendering Tables

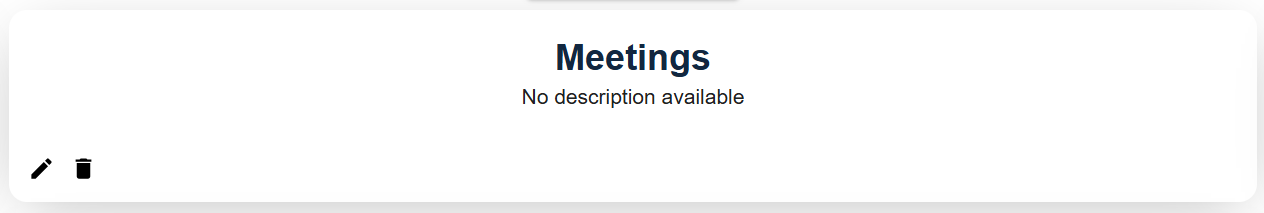

Each table is displayed as a Material UI Card showing its name and description. Clicking on a card navigates the user to the tables details page.
<Grid container spacing={3}> {tables.map((table) => ( <Grid item xs={12} sm={6} md={4} key={table.id}> <Card> <CardContent onClick={() => navigate(`/table/${table.id}`)}> <Typography variant="h5">{table.name}</Typography> <Typography variant="body2">{table.description || "No description available"}</Typography> </CardContent> <CardActions> <IconButton onClick={() => { setCurrentTable(table); setModalOpen(true); }}> <EditIcon /> </IconButton> <IconButton onClick={() => handleDeleteTable(table.id)}> <DeleteIcon /> </IconButton> </CardActions> </Card> </Grid> ))} </Grid>
Creating and Updating Tables
Users can create a new table by clicking the "Create New Table" button, which opens a modal. Similarly, clicking the edit button on a table opens an update modal.
<Button variant="contained" onClick={() => setCreateModalOpen(true)}> Create New Table </Button> <CreateTableModal open={createModalOpen} onClose={() => setCreateModalOpen(false)} onCreate={handleCreateNewTable} /> {currentTable && ( <UpdateTableModal open={modalOpen} handleClose={() => setModalOpen(false)} handleUpdate={handleUpdateTable} table={currentTable} /> )}
Handling Table Actions with TableService
The TableService
methods allow seamless CRUD operations.
Creating a Table
const handleCreateNewTable = async (tableData: any) => {
await tableService.createTable(config.projectId ?? "", tableData);
fetchTables();
setCreateModalOpen(false);
};
const handleCreateNewTable = async (tableData: any) => { await tableService.createTable(config.projectId ?? "", tableData); fetchTables(); setCreateModalOpen(false); };
Updating a Table
const handleUpdateTable = async (tableData: any) => {
await tableService.updateTable(config.projectId ?? "", tableData.id, tableData);
fetchTables();
setModalOpen(false);
};
const handleUpdateTable = async (tableData: any) => { await tableService.updateTable(config.projectId ?? "", tableData.id, tableData); fetchTables(); setModalOpen(false); };
Deleting a Table
const handleDeleteTable = async (tableId: string) => {
if (window.confirm("Are you sure you want to delete this table?")) {
await tableService.deleteTable(config.projectId ?? "", tableId);
fetchTables();
}
};
const handleDeleteTable = async (tableId: string) => { if (window.confirm("Are you sure you want to delete this table?")) { await tableService.deleteTable(config.projectId ?? "", tableId); fetchTables(); } };
This demo showcases how to effectively manage tables within a StellarDS project using the StellarDS TypeScript SDK. We've built a React-based interface that allows users to view, create, update, and delete tables, all while leveraging Material UI for styling and React Router for seamless navigation.
So far, we've laid the groundwork by setting up the project, integrating the SDK, and implementing table management functionality. In Part Two, well take this further by adding AG Grid for enhanced table visualization and implementing CRUD operations to provide a more dynamic and interactive experience.
Get Started Today
The StellarDS Typescript SDK is available now, complete with sample code and detailed documentation to help you hit the ground running. Explore our to-do list demo, dive into the SDKs capabilities, and start building powerful applications with StellarDS today.
Download the SDK or Check out the Documentation to get started now!
